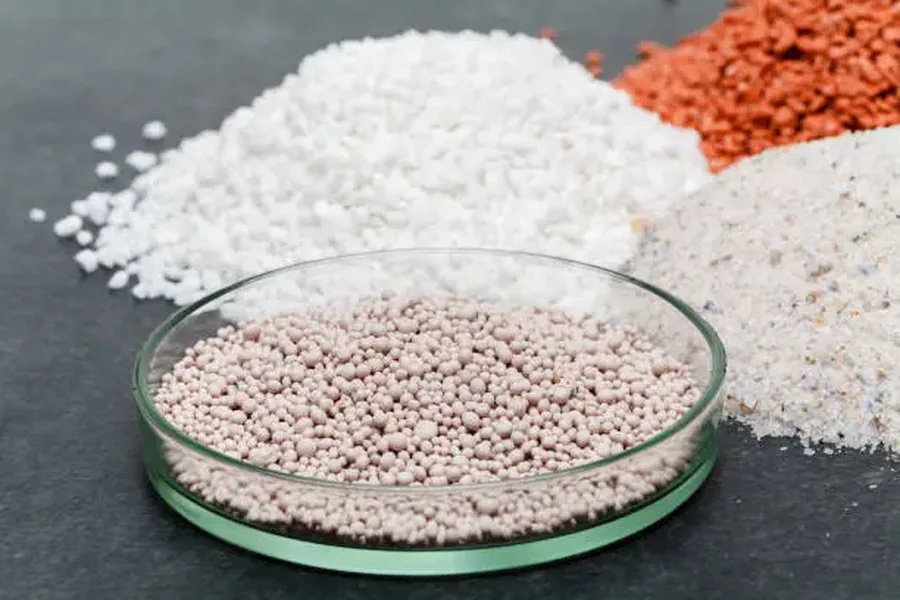

Optimizing PSA Oxygen Generators: Material Selection, Molecular Sieve Degradation, and Longevity Engineering

The Fundamentals of Nitrogen Adsorption in PSA Systems

Thermodynamic Mechanisms of Molecular Sieves

Industrial Pressure Swing Adsorption (PSA) relies on synthetic zeolite crystals to separate air into its constituent gases. These adsorbents utilize X-type and A-type structural frameworks characterized by uniform, atomic-scale pores.

Within the crystalline lattice, thermodynamic equilibrium dictates separation efficiency. Exposed cations—typically sodium, calcium, or lithium—create a strong localized electrostatic field across the inner pore surface.

Nitrogen molecules possess a larger quadrupole moment than oxygen or argon. Consequently, nitrogen is preferentially trapped via electrostatic interactions at elevated pressures, while oxygen passes through the mass transfer zone unadsorbed.

Kinetic Adsorption vs. Equilibrium Capacity

Understanding the distinction between static equilibrium and kinetic adsorption is critical when designing compact adsorption vessels. Equilibrium capacity defines the absolute volume of nitrogen a zeolite bed can hold at infinite time.

However, industrial PSA cycles operate on rapid timescales, making adsorption kinetics the primary constraint. Fast diffusion rates allow systems to minimize bed size and shorten cycle times, improving overall gas productivity.

When engineering modern PSA systems, achieving high oxygen purity (up to 93% ± 3%) relies heavily on the kinetic separation efficiency of the adsorbent bed. According to technical specifications published by Jalon on industrial molecular sieve performance, optimizing the SiO₂/Al₂O₃ structural ratio in specialized sodium- and lithium-exchanged sieves can significantly increase nitrogen adsorption rates while preserving mechanical crush strength under rapid pressure cycling.

Core Drivers of Molecular Sieve Degradation and Bed Failure

Moisture Contamination and Isothermal Poisoning

Liquid water and elevated relative humidity represent the most severe threats to zeolite longevity. Water molecules exhibit a strong dipole moment that binds aggressively to the zeolite cation sites.

This process causes isothermal poisoning, rendering the active sites unavailable for nitrogen capture. Additionally, moisture adsorption releases significant isothermal heat, causing local thermal spikes within the vessel.

Over time, irreversible adsorption causes permanent crystalline degradation and pore blockage. If liquid water carries over, it can dissolve the crystalline binder, destroying the structural integrity of the adsorbent bed.

Bed Fluidization and Mechanical Attrition (Crushing)

Mechanical failure often originates from improper bed compression or overly aggressive pressure equalization steps. When high-velocity air enters an inadequately restrained bed, it induces bed fluidization.

As individual zeolite beads lift and collide, mechanical attrition degrades the outer surfaces into fine abrasive dust. This dusting increases pressure drop spikes across the bottom screens and effluent filters.

Eventually, structural shifting creates voids that induce gas channeling. Compressed air bypasses the active zeolite mass entirely, leading to immediate oxygen purity drop-off.

Advanced Sieve Materials: Selecting High-Performance Adsorbents

Standard 13X vs. Lithium-Exchanged Molecular Sieves (LiX)

Selecting the correct zeolite adsorbent requires balancing capital cost against operational thermodynamic efficiency:

• Standard 13X Sieves:Composed of a sodium-exchanged X-type lattice, 13X is the traditional workhorse for standard PSA systems operating at medium pressure ratios.
• Lithium-Exchanged Sieves (LiX / Li-LSX):Low-silica X-type zeolites exchanged with lithium ions offer a dramatically stronger electrostatic interaction with nitrogen molecules.
• Performance Delta:Li-LSX delivers up to 3 times the nitrogen equilibrium capacity of standard 13X at operating pressures, making it the superior choice for high-efficiency VPSA and PSA oxygen concentrators.

Evaluating Attrition Resistance and Crush Strength Metrics

Before commissioning an adsorption vessel, procurement and chemical process engineers must audit physical mechanical specifications:

• Crush Strength (N/bead):Measures resistance to static load; beds deeper than 2 meters require higher crush strength to prevent bottom-layer fracture.
• Bulk Density (g/mL):Impacts vessel sizing and packing efficiency; higher density reduces void fraction and minimizes channeling risk.
• Attrition Resistance (% weight loss):Quantifies dust generation under agitation; material must test below 0.1% per ASTM standard protocols.

Preventative Engineering for Prolonged PSA Operational Lifespan

Upstream Gas Pre-Treatment (Refrigerated & Desiccant Dryers)

Because water vapor acts as a severe poison to zeolite crystalline networks, maintaining a stringent upstream dew point is critical to prevent exothermic degradation and pore blockage. Facilities must comply with strict industrial gas preparation protocols; as detailed in fundamental engineering guidelines on pressure swing adsorption, managing feed-gas compression and purification is the single most effective determinant of adsorbent bed longevity.

Engineers must install a multi-stage conditioning train upstream of the molecular sieve vessels:

• Refrigerated Dryers:Lower compressed air dew points to approximately +3°C to remove bulk condensed moisture.
• Coalescing Filters:Eliminate aerosolized compressor oil, which permanently coats external zeolite pores.
• Desiccant Pre-Beds:Use activated alumina to depress the pressure dew point to -40°C or lower prior to zeolite contact.

Optimizing Valve Timing and Pressure Equalization Rates

System valve actuation speed plays a major role in preventing aerodynamic shearing across the zeolite bed:

• Damped Actuation:Avoid instantaneous valve opening; use proportional control valves to ramp up pressurization linearly.
• Equalization Tuning:Extend pressure equalization durations to reduce high-velocity gas surges between twin towers.
• Flow Restrictors:Install orifices on exhaust lines to prevent rapid depressurization from lifting the top layer of adsorbent.

Conclusion: Best Practices in Lifecycle Maintenance

To maximize asset lifespan and guarantee stable oxygen purity, operators should implement an ongoing diagnostic maintenance schedule:

• Monitor Differential Pressure:Log pressure drop across the bed weekly; a sudden increase greater than 15% indicates severe bead dusting and filter blinding.
• Track CO₂/H₂O Slip:Use online dew-point sensors and infrared analyzers at the vessel inlet to detect pre-treatment failures immediately.
• Inspect Bed Compaction:Regularly verify hydraulic or mechanical spring restraint mechanisms to ensure continuous bed compression.
• Conduct Acoustic Audits:Listen for rattling or shifting sounds within the vessel during equalization, which signals incipient bed fluidization.
